Cue routing matrix

Each audio component can own a routing matrix (CuePatch): gains from source channels (file inputs) into patch buses. This is the artistic mults/sends stage.

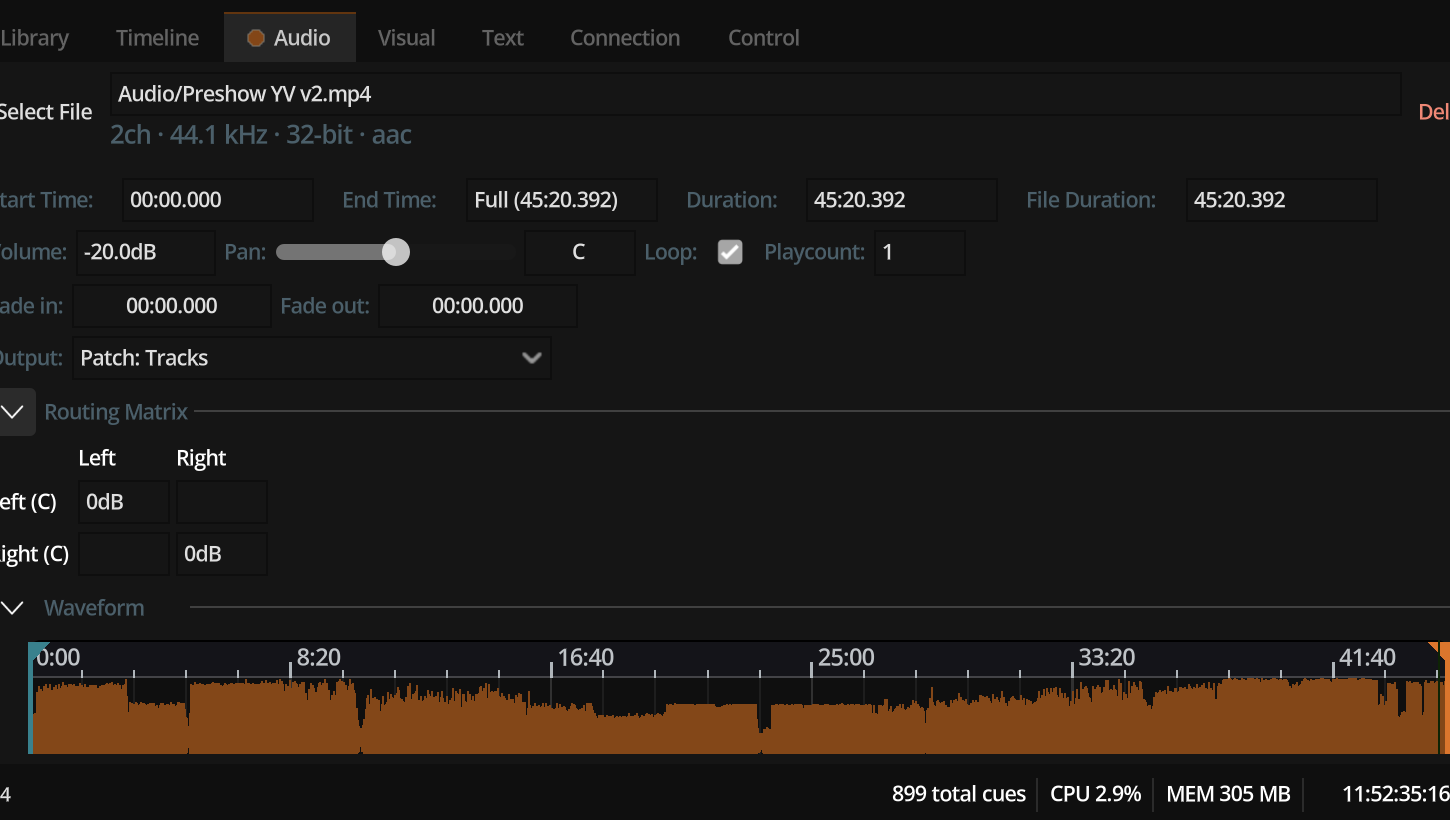

Cue routing matrix

Order of operations​

decoded PCM
  → component volume × master volume
  → stereo pan (if 2-ch)
  → cue routing matrix   ← this page
  → output patch / direct device map
  → SDL

Editing​

  • Crosspoint levels are linear gains in the mix engine.
  • Control components can fade a single matrix cell over time (RoutingMatrix fade property).
  • Matrices serialise with the cue in the showfile.
